Catching Up with Ham Radio Stuff : The Move and A New (sort of) digital mode

The Move, shifting all of my radio and computer gear to the basement, is now officially underway. Well, sort of. Nothing has actually gotten moved yet. I’m still in the process of cleaning out the area I want to use and getting it ready. But the handwriting is on the wall. MrsGF is retiring at the end of Feb and if I don’t move out of our shared office we’re going to drive each other nuts.

For years now my “radio shack” has been shoved into a corner of the office MrsGF and I share, with all my equipment perched on a single desk and a small filing cabinet. It’s worked, but it has been awkward and cramped. There just isn’t enough room. I have a work table in that room as well where, theoretically, at least, I was going to be able to tinker with electronics and repair equipment. But because the room is also our office, what actually happened was the table ended up with about ten inches of papers, books, files and I don’t know what all else on top of my tools and test gear. To make things even more cramped, I also have a big iMac, various graphics tablets, several RAID arrays, three printers, including a massive professional photo printer, well, you get the idea. Then add in MrsGF’s desk, computer and all her stuff, and something has to go, and that’s me.

Even that wouldn’t be so bad if it weren’t for my own psychological quirks. I simply cannot concentrate if there is someone behind me. I’ve always been that way. Her desk and computers are directly behind me and when she’s back there I can’t concentrate on anything. I can’t read, can’t write, can’t work on photos or drawings. I also need a fairly quiet environment to get anything done. Soft music is okay, but the sound of someone behind me moving, coughing, talking on the phone… well, I just can’t deal with it.

So between the crowded environment up here and my own personal issues, well, I need to move this whole operation if MrsGF and I are going to stick together for another 40 years or so…

Unfortunately, the area I want to move into looks like this.

This is what your basement will end up looking like if both you and your son are A) packrats, and B) computer/electronics geeks.

This used to be Eldest Son’s workshop in the basement when he lived with us years ago, and represents years worth of accumulated computers, parts, hard drives, terminals, networking gear and I don’t know what all else that he neglected to take with him when he moved out years ago. We never bothered with it before because I didn’t have any use for this space. And now that I do, the first order of business is getting all this stuff out of there, and that’s what I’ve been working on.

Some progress has been made, though! Really.

That bench there used to be covered three feet deep in stuff, so just getting that cleared out is a major victory. I’m hoping that by the end of the week I’ll have enough stuff shifted so I can start painting the walls. I’ll keep that work bench but put a nice sheet of plywood or something similar over the top of it to make a smooth work surface. The radios and computers will go here eventually. We’ll also have to rewire the whole area, adding a half dozen or so 120V outlets and at least one 220V outlet (maybe two) for the amplifiers.

There is another work bench behind me and to the left, about the same size, that is going to be where I’ll have my actual workbench with my meters and test gear, soldering equipment, tools, etc.

Anyway, that’s what’s been going on here of late. I’m sure MrsGF is eagerly looking forward to getting me out of the office so she can move all her stuff in.

JS8Call

I’ve been playing with a fairly new digital mode in amateur radio called JS8Call. It is based on the wildly popular FT8 mode that was first implemented with the WSJT-X software developed by K1JT and others. (WSJT-X is open source and it is available for Linux, Windows, OSX and Unix like operating systems. You can learn more about FT8 at https://physics.princeton.edu/pulsar/k1jt/index.html)

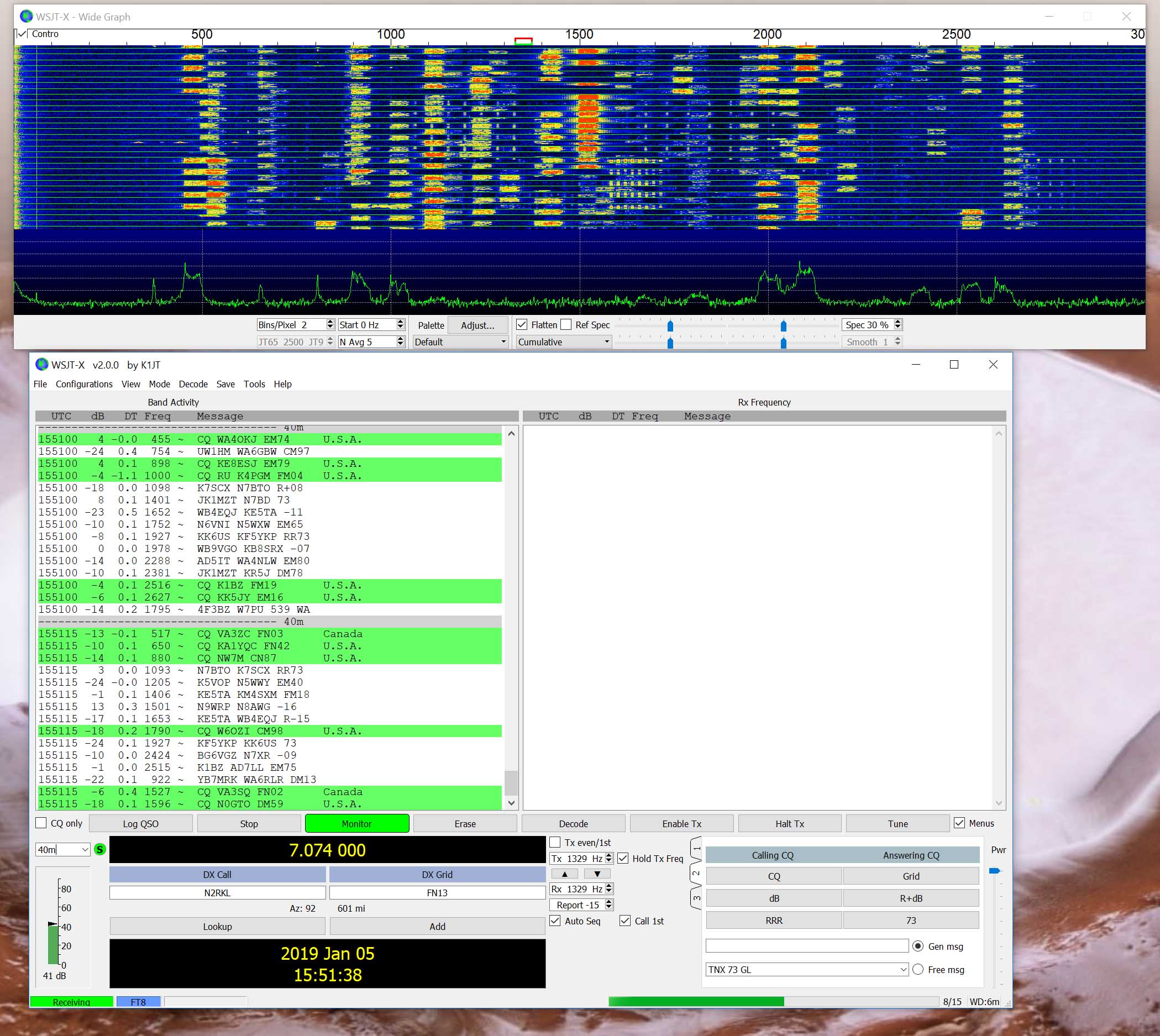

This is what the WSJT-X software looks like when running FT8.

FT8 works well as a weak signal mode, allowing contacts to be made under poor conditions and with modest or even poor antennas and low power levels. But FT8 isn’t designed to actually communicate with other people. It is intended to make “contacts” only. And in the amateur radio world, “contact” means exchanging only enough information to fulfill the requirements of some contest or award program, and not actually talking to another person. In fact, it would be almost impossible to use FT8 to exchange any kind of useful information with another radio operator. FT8 exchanges call signs, a grid reference (location) and a signal report, and that’s it. And all of that is pre-programmed into the system. Once the contact is started, the WSJT software conducts the entire exchange by itself. There are provisions for a so-called “free message”, but it is extremely awkward to use and very limited.

And, frankly, boring. At least to me. Don’t get me wrong, I use FT8 myself. But after about half an hour of it I’m bored. I can’t actually talk to anyone, can’t ask questions, just sit there and watch WSJT go through it’s automated contact sequence. It gets dull fast.

Screen capture of JS8Call running on my system.

That’s where JS8Call comes in. It uses the same digital encoding techniques used by FT8. It still uses the same 15 second transmission bursts. But it permits actual conversations to be held between two operators. Not very quickly, true. It looks like it’s limited to about 15 words per minute or less, but that’s still a heck of a lot faster than a lot of us can bang along in CW.

And since it uses the exact same encoding protocols used by FT8, it shares that mode’s robust nature and permits people with less than ideal equipment and antennas to make contacts they otherwise would not be able to make.

JS8Call has a lot of fun and potentially useful features as well as the ability to send actual text messages back and forth rather than FT8’s limited contact system. Messages can be directed to a specific call sign or a group of call signs. There are directed commands that you can send which will generated automated replies from anyone who hears them, it can relay messages to others if you have it set up right. There is a lot of neat stuff JS8Call is capable of doing. Read the documentation at their website to find out more.

So if you’ve use FT8 but have found it’s pre-programmed, automated contact system frustrating, give JS8Call a try. You can find out more about it at their website. Click here to take a peek.

A few things, though.

First, JS8Call is still very much in beta testing. New versions with added/changed features and bug fixes are being released every few weeks. While the program seems stable, it can have odd little quirks and problems from time to time. How it works and its various functions can change with each new edition of the software.

Second, because it is still in beta testing, it is not available for general release. You can indeed get it, but you need to join a discussion group to get access to the download. It isn’t a big deal. They aren’t going to spam you or anything like that. The reason for restricting access is, as I said, because it is still in testing and is being changed frequently. Once the feature set is frozen and they’ve worked all of the bugs out, a version will be made available for general release.

Third, because it is based on FT8, it has a lot of the same quirks and drawbacks FT8 has. It only transmits in 12.6 second bursts, based on a 15 second time frame. Your computer clock must be accurately synchronized. You are going to need to run a utility program that will keep your computer’s internal clock accurate. Most computer clocks are not accurate enough by themselves.

Fourth, as noted earlier, it isn’t exactly fast. You’re going to average about 10 – 15 wpm when using it. But as I also said, most CW operators don’t work much faster than that.

If you’re interested in the digital modes, are getting bored of FT8, give JS8Call a try.

Indoor Tulips & Assorted Stuff

Screen Shot 2018-03-31 at 6.41.27 AM

MrsGF has been just as sick of looking outside at the brown wasteland that is March here in Wisconsin as I have, so she shoved some old bulbs into pots and put them in a sunny window a few weeks ago and this is what we have now. Great fun to see tulips starting to pop open again.

Screen Shot 2018-03-31 at 6.41.39 AM

That’s not to say that there aren’t things growing already. She was outside looking things over yesterday and discovered that the chives are already six inches tall over in their protected corner. They’re always the first things to spring up and they’ve been ridiculously prolific. We put those in shortly after we bought the house so they’ve been going strong for almost 20 years now.

The big question now is sod, as in how are we going to get rid of it. There is a pretty big section of lawn we want to rip out to expand one of the gardens here, and getting rid of

This was the little Massey. Fun, useful little tractor but keeping it in town was a bit ridiculous

the sod is always a pain in the neck. I sold my tractor a couple of years ago. After selling the farm we kept the little Massey for a while, but keeping it was a bit silly. It was mostly in storage over at the farm of a friend about 8 miles from here and there it sat until we needed it perhaps for one afternoon a year. So keeping it and its trailer was ridiculous. So it looks like I’ll resort to the good old fashioned dig it up with a shovel method as soon as the frost is completely out of the ground.

MrsGF and I were sorting through seeds and tentatively making plans earlier this morning. We were thrilled when Eldest Son gave us literally a whole shopping bag of seed packets for Christmas, but we have to be realistic. We can’t grow all of it as much as we’d like to. And there are quite a few that we don’t really like or couldn’t use. Neither of us like melon all that much, and it takes up a lot of space, so those got set aside. Same with eggplant. Don’t get me wrong, eggplant is a perfectly delightful vegetable. But that one summer our eggplant was so ridiculously prolific that we got so sick of eating eggplant that we can’t really stand looking at them any more.

We brought up the little portable greenhouse rack we use to start seed and MrsGF is in the process of starting trays of seeds even as I write this.


Amateur Radio Stuff

I’ve been having a lot of fun with the FT8 mode over the last couple of months. Even with my seriously bad antenna system I’ve had a couple of hundred contacts and have managed to hit something like 35 different countries, including some really long distance contacts with Hawaii, Alaska, Japan and Tasmania.

I’ve even started playing with PSK again and have made a few contacts with that mode as well. Unlike FT8 you can actually chat with people using PSK. Unfortunately it seems most PSK users have jumped ship for FT8 and seeing a PSK signal on the bands has been a rather rare thing. Even more annoying is that the powers that be decided that on 17 meters the frequency recommendation for FT8 mode is the same one as the PSK allocation, so PSK on 17 meters is a lost cause because the frequency is swamped with FT8.

antennaI’m hoping to get this puppy up in the air this spring. It’s already mostly assembled out in the back yard and we have all the hardware for mounting, including the tilt-over base. It’s a GAP Titan multi-band vertical antenna that should help to give me a significant boost over the OCFD I currently have hanging out there now. This one is going to replace the Comet 250 vertical I have and which is… Well, let’s face it, the Comet isn’t that good of an antenna. It can only handle about 240 watts and to be perfectly frank I’m amazed the thing works at all.

I also have a 40 foot antenna tower laying out in the backyard that will hopefully get set up sometime this summer. Of course I said that last summer, too. And the summer before that…



Amateur Radio: More on FT8

On Feb 12 I decided to take a serious look at what operating with the FT8 mode was all about. I had the software configured, the equipment all ready to go, fired everything up, tuned up on 18.100, and started trying to make contacts and, well…

In a short time I’d logged contacts with Southern California, Oregon, Brazil, England, Finland, Spain, France… Wow.

The next day I got curious about just how well I was getting out and went to the PSK Reporter website to check. If you’ve never heard of PSK Reporter, it is a great service that links monitoring stations all over the world to a mapping system that will show you what monitors received your signals (or anyone else’s for that matter) and when. You can see what overall band conditions are like, or you can plug in your call sign and a date and time, along with a specific band if you like, and see if anyone heard your transmissions.

I pulled up the map and, well, look:

Screen Shot 2018-02-13 at 5.40.25 PM

Every one of those blobs with an “hrs” label is a report of my transmissions being heard that day. I was hitting large parts of the US, almost all of Europe, the west coast of North Africa, South Africa for pete’s sake, and, amazingly, New Zealand.

I played around for a while yesterday and had similar results. I made contacts in England and the west coast of the US, and the map showed results similar to the one above.

Oh, and I had one contact on 17 meters with Elkhart Lake, WI, about 20 miles from here. I’m still trying to figure out what kind of weird system of propagation allowed that to happen.

I already knew FT8 was wildly popular, and now I had first hand experience of why. Once you get the hardware and software set up, operating is a snap. Pick a clear spot on the water fall for transmission, click a mouse button to start a CQ and sit back and wait. The CQ is automatically transmitted every 15 seconds until you either stop it or someone responds. When someone does respond, the software picks up their call sign, plugs it in the right spot in the pre-programmed responses, and begins the automatic exchange of grid square, reception data, and then ends the contact and pops up a box to log the contact.

If you see someone calling CQ that you want to try contacting, just double click on the call sign and the system begins trying to make contact with them, and if it does, goes through the automated exchange.

Because of the digital coding system used by the software, this is a very efficient way of making a contact. It is a very narrow bandwidth, can handle signals down to -20 dB or so, and lets people make contacts they normally would never have been able to log.

So what’s the controversy all about? Why do some people seem so upset about FT8? I’m not really sure. Yes, there is very little actual “communication” going on, but the same is true for a lot of other contacts going on as well. Most PSK communications, even RTTY, is little more than an exchange of pre-recorded macros. Same with a lot of other digital modes. And may of those modes are just as automated as FT8 is.

Everyone in amateur radio is excited by different aspects of the hobby. Some like to talk, some like to experiment with electronics, some like to try to design better antennas, some are fascinated with how radio signals are propagated through the atmosphere. Some like EME (Earth-Moon-Earth) or moon-bounce. Some are into satellite communications. Some like contesting. Some enjoy DX chasing, trying to make contact with far away places that are hard to reach. And for DXers, FT8 is just another tool they can use to try to reach a goal of contacting a hard to reach country or region.

Are there problems with FT8? No doubt about it. The main one seems to be overcrowding. Last night down on 20 meters, and even on 80 and 160 meters the FT8 portions of the band were almost solid red all the way across the waterfall display. It looked and sounded like no one was even bothering to try to find a clear frequency. They were just hitting “transmit” anywhere on the band, whether they were sending over the top of someone else or not, and hoping the software could sort out the mess.

I have to admit that when I started looking at FT8 I was prepared to dislike it. But the thing is very addictive as you start to watch contacts from far away places go into the log, and I’ll probably keep playing with it as time permits.

Amateur Radio’s New Digital Mode, FT8. Let the controversy begin…

Screen Shot 2018-02-11 at 8.43.39 AM
Gads, what a mess

Amateur radio has a new toy to play with, a new digital mode called FT8. The name

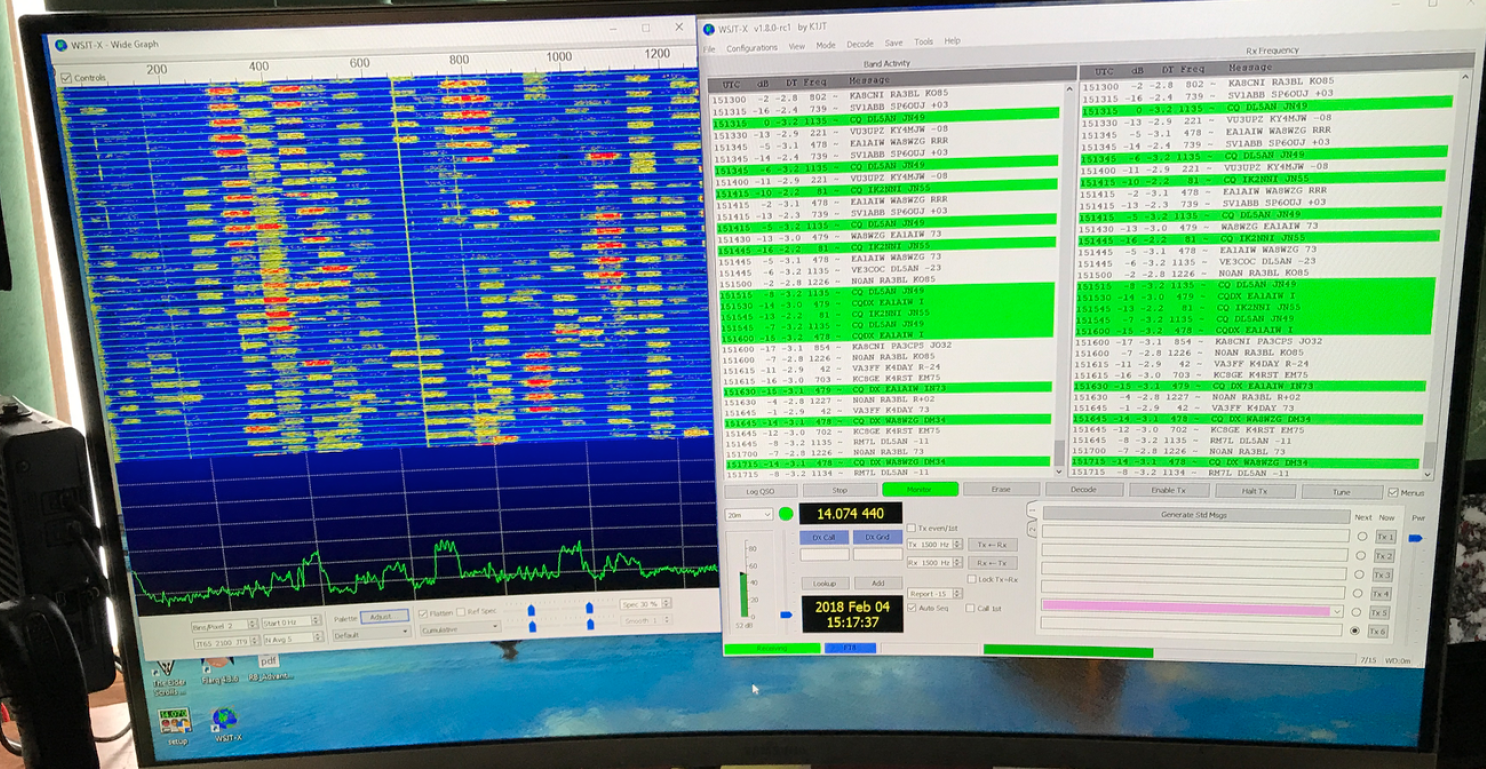

Screen Shot 2018-02-11 at 8.44.04 AM
WSJT software in action

comes from the first two letters of the last names of its developers, Franke (K9AN) and Taylor (K1JT), plus the number 8 because it uses 8 frequency shift keying. The new mode has only been generally available since late June or July 2017 when it released as a beta. And it almost immediately took over amateur radio down on the HF bands. I’ve seen estimates that claim that more than half of all contacts on HF are now taking place using FT8.

FT8 is a “weak signal” mode, meaning that you can often successfully decode signals that are down around -20 dB. This is not as good as some of the other digital modes out there such as JT65 which can go as low as -28 dB. But it is much, much faster to make a contact with FT8 than with JT65. Like any communications mode, it has advantages and drawbacks. And like most digital communications modes, it requires a computer interfaced to your transceiver.

I’m always up for something new, and with temperatures hovering down around 0(F) fiddling around with FT8 has seemed like a good way to spend my free time over the last few days. I already had the WSJT software installed on my Win10 computer but hadn’t really had much incentive to do much with it until now.

I won’t go into the details of getting the software installed, configured, hooking things up to your transceiver, etc. There are dozens of tutorials out there. How you set it all up is going to depend on your computer, what transceiver you’re using, sound card, etc. In my case I’m using a Kenwood TS-990 with a RigBlaster Advantage, the same equipment I use for my other digital modes.

Initial setup wasn’t too difficult. The FT8 Operating Guide by Gary Hinson was a big help in getting everything working properly and is highly recommended.

Screen Shot 2018-02-11 at 12.21.21 PM
First FT8 contact

Much to my surprise, I actually got everything working without a great deal of difficulty and after getting set up and calibrated I took a stab at calling CQ on 15 meters and actually made a contact. WA7MPG in Canada BC.

So, what’s the controversy I mentioned in the title of this? Nothing less than (drum roll please) the end of amateur radio! (Imagine spooky voice saying that)

Yes, according to some out there, FT8 heralds the end of amateur radio. Well, true, they said the same thing about SSB, packet radio, repeaters, PSK, digital voice, SSTV, dropping the morse code requirement and, well, pretty much every innovation to come along in the last 100 years or so. But this time it’s really the end! Really!

Oh, brother…

The complaints are due to the fact that FT8 is almost entirely automated. Contacts via FT8 consist of brief, 15 second long exchanges of call sign, grid location, signal strength, and then a 73 to end, all done by the software. A click or two of the mouse is all it takes to start the whole process, and then you sit back and watch the computer do the work.

And this is what they’re complaining about. It takes the “human element” out of the whole thing, they claim. It is just making contacts for the sake of racking up another contact in the log. It isn’t “real” amateur radio. It isn’t real communications. It’s just two computers talking to one another.

The arguments are just silly, of course. Yes, it’s real communications. Information is being exchanged. And as for the other arguments, well, the same things could be said about any digital mode of communications; RTTY, PSK, etc. If you monitor the people who use those modes you’ll quickly find that most “conversations” take the form of pre-written and stored messages or macros that are sent automatically. Heck, if you monitor the CW portions of the bands you’ll find a lot of people are doing the same thing even with CW using decoding software and keyers.

Look, amateur radio includes a huge variety of methods of communications, both analog and digital. Everyone has their own favorite thing to do. But there are a lot of amateur radio operators out there who can’t afford to operate a contest quality station with acres of antennas and ten thousand dollar transceivers and amplifiers, but who would still love to log contacts with other amateur radio operators in far off places. FT8 allows people with modest equipment and antennas to use a weak signal mode to make contacts that they normally would probably never be able to make. It doesn’t encroach on the territory of the SSB or CW portions of the bands.

So why all the complaints? I’m not really sure. FT8 has become wildly popular for a lot of very good reasons, and it isn’t going to go away any time soon. Even better, it’s getting a lot of amateur radio operators who weren’t all that active before to start exploring the hobby once more.

Am I going to use FT8 a lot? Heck, I don’t know. I’m one of those very odd amateur radio operators who doesn’t actually like to talk to people. I’m more into it because of the technology. But I still like to get on the air once in a while, if for no other reason than to test equipment and antennas. FT8 could at least make my contact log look a lot less sparse, so maybe. We’ll see.
