Air Filter, Another Finish Experiment, Cleaning

I mentioned that I needed to do something about the dust getting into the rest of the house and ordered an air filtration system made by ShopFox. It arrived on Saturday and I have it set up in the shop now. So far it looks pretty good, but I haven’t done any serious sanding or wood turning yet, so we’ll see just how well it actually works once I get a new project started.

It looks well made, steel outer case, handle on top so you can move it around. Two stage filtration system. A 2″ thick pleated filter with a 2nd filter made of some kind of cloth like material on the inside. It weighs maybe 20 pounds, and while it’s intended to hang from the ceiling you can really just put it anywhere. This one is going to end up on a shelf in the shop because my ceiling is too low to hang it up without cracking my head open on it.
Controls are simple, an on/off switch and one to control motor speed. The timer function can only be used from the included remote control. The remote is a nice touch, but it only works when pointed directly at the back of the unit so the remote’s usefulness is seriously limited. Note the silly safety stickers on the back of this thing. Obviously they just slapped every sticker they had from their other machines, whether they were appropriate or not.

If you go shopping for one of these don’t let the hype in the advertising fool you. All these things are is a box with a fan and motor, with one or more filters in it. How well these things work is entirely dependent on the filters used and how much air the fans pull through the filters. And that’s it. Everything else is just fluff and nonsense you don’t need.

This one looks fairly robust. The outer case is sheet steel, looks well made, nice fit and finish to it. It has a 3 speed fan that looks like it should be more than capable of handling the size room it will be in. The only other control is a timer so you can set it to turn itself off after 1, 2 or 3 hours. It came fully assembled, with the filters already installed. I just took it out of the packing material, took it out of the plastic bag and turned it on. And supposedly the filters are cleanable/washable and can be reused. So we’ll see about that.

Anyway, I’ll keep you updated about how well it works and if it does a better job than the makeshift furnace filter taped to a box fan trick. Considering how much dust I generate when I’m sanding I may end up using both the Shopfox filter and the box fan trick.

A New Finish Experiment

I’m always looking for ways to finish wood that improves its appearance and that is easy to use. I’m also addicted to Youtube (sigh… the hours I’ve wasted there…) and learned about something called “OB Shine Juice”, some kind of miraculous, easy to use, virtually instant finish you just slap on and buff out and…

But like most of these “tricks”, it turns out that in real life, no, it’s not that easy to use, at least not any easier than most of the other methods I’ve used. And while it might be useful for somethings it isn’t some kind of miraculous super finish. And it has some serious drawbacks including the fact that it is potentially dangerous. The danger is slight, true, but it’s still there, and I’ll talk about that at the end of this segment. Is it useful? In some cases, yes. But it isn’t going to replace my usual finishing methods.

All you need to make OBSJ

You can’t buy this stuff, you have to make it, but there are only 3 ingredients and all are easily available and fairly cheap. Boiled linseed oil, shellac (most of the recipes call specifically for Zinsser shellac apparently because Zinsser seems to be the only company that still makes the stuff) and denatured alcohol. Just chuck equal parts of each into a bottle, shake it up, and there you go.

I didn’t have Zinsser’s on the shelf because I make my own shellac. I could have used my own but most of the recipes for this stuff called for Zinsser specifically, and I wanted to stick with the instructions exactly for this test. I ran down to the local hardware store and found some and scurried home with my prize.

Right off the bat I started to have doubts about all of this because as soon as I opened that can I began frowning.

Now the shellac I make is in that photo over there on the left, almost completely clear, no cloudiness, a nice golden amber color that dries clear and almost colorless, and the only thing you can smell when you open that jar is the alcohol. I’ve said before that I really, really like shellac. It’s a great sealer, sanding sealer, and even makes a pretty darn good final finish if you use one of the thicker cuts. So I figured the commercial stuff would look pretty much like what’s in that jar.

This is shellac? Seriously?

I was wrong. When I opened that can of Zinsser’s… Oh dear. This stuff was just nasty. I mean seriously nasty. Thick, cloudy, even muddy looking. And it smelled just as nasty as it looked. First thing I thought was that somehow I’d got a bad batch or something. So the next day I went to a different hardware store and bought another one. I popped it open and it was exactly the same. How old was this stuff, anyway? Shellac has a limited shelf life. I looked all over the can and I couldn’t find a manufacturing date or an expiration date or anything that might indicate when it was made. So for all I knew this stuff had been sitting on the shelf for years.

Well, I wanted to follow the instructions exactly so I mixed the stuff up using the Zinsser’s anyway. I mixed 4 oz of each of the three products and, frankly, it didn’t look very good. Or smell very good. But let’s try it and see what happens.

I had a small, simple ambrosia maple bowl on the lathe that I’d just finished sanding and decided to try it on that. The instructions for using the stuff are pretty simple. Just slather the stuff on using a paper towel until the wood doesn’t absorb it any more. Then spin up the lathe and start applying very, very light coats until the wood doesn’t seem to be absorbing anything and then start to slowly buff it out. So that’s what I did.

I didn’t have high hopes for this stuff, but I have to admit that it turned out fairly nice.

But to be honest, it isn’t as nice as I’d hoped it would be, and certainly isn’t as nice as the proponents of this stuff claim. Nor is it as easy to use as they claim. In fact it is considerably more time consuming and difficult to use properly than my usual method of just putting several seal coats of thin shellac on a piece of wood followed by carnauba wax and buffing it out.

First thing I discovered is dear lord do not use paper towels, which is what a lot of these guys recommend. Paper towels began to disintegrate almost immediately, leaving shreds of paper all over the wood. I ended up having to go over the whole thing with OOOO steel wool to remove the tiny paper shreds and start over using a piece of lint free fabric.

Second, this is not a fast process. They make it seem so fast and easy in the videos. It isn’t. It takes a considerable amount of time, and many, many coats of this stuff before it starts to get even close to glossy. And it took me quite a while before I began to figure out just how much pressure and how much ‘juice’ to use to get it to start to buff out properly.

Does it work, though? Sort of. The end result looks pretty good. I can see this being useful for projects that have a lot of detail and odd shapes where it would be difficult to get waxes or other finishes into all of the little nooks and crannies. But is it something I’ll use frequently? Probably not.

Now, the dangerous bit. I’m not joking around here – linseed oil is a serious fire hazard. It generates heat as it dries, a lot of heat. Enough to cause rags, paper towels, etc. to spontaneously combust. I like to think I am not a paranoid person, but linseed oil scares me because I’ve seen this happen in real life. This stuff can and will cause fires if you don’t handle it properly.

Is OB shine juice a potential fire hazard then? It is only one third linseed oil so the risk is probably minimal. But do you want to take the chance? I don’t. The rags I used for this project were soaked in a material that contains alcohol, which is highly flammable, plus linseed oil which can spontaneously combust. Do you think I’m going to keep that in the house? I may be crazy but I’m not stupid (I hope). They were immediately dumped into a container of water and taken outside and they’ll end up in the firepit. Am I being paranoid? Maybe. Don’t care. I’m not going to take the chance.

It seems that if there is a space anywhere where I can shove wood, there is wood shoved into that space.

Cleaning – ah, yes, cleaning… I was getting tired of not being able to find stuff and having to dig through all of the clutter in the shop. And finding piles of dust, dead spiders, cobwebs, bits of sandpaper, pieces of wood piled all over, etc. whenever I moved something. So I started cleaning up the shop and trying to organize things better.

And what do I do with some of this stuff? I have a $200 biscuit joiner that I used exactly once about 15 years ago that’s been gathering dust ever since. I have jigs that cost some serious money and were used once before I figured out that setting the damned jig up and doing test cuts to fine tune it took three times longer than just doing the job by hand. A half dozen plastic carrying cases for tools I don’t have any more (why didn’t I toss those years ago???). There’s an ancient Skil router with a bad collet that I can’t get parts for. I found three (three??? How did I end up with three???) scroll saws. A couple of dozen paper bags filled with screws and nails of every imaginable size. But of course none of them are ever the size I actually need for a specific project so I have to buy more. And then there are the bits and pieces that obviously came off of some tool, somewhere, but what tool? What were they used for? Should I just throw it away? Of course if I throw it away I’ll almost immediately remember that I really needed it…

And wood stuck away everywhere… Sheesh. But then is there even such a thing as having too much wood?

Anyway, it’s cleaning time!

More Details on finishing, New BandSaw, plus Stuff

Someone asked what kind of wax and finish I’ve started using recently so here’s a bit more info.

The basic formula for the sanding sealer I use is one ounce (weight, not volume) of shellac flakes to one cup of denatured alcohol. Put the flakes into a glass jar that has a tight fitting lid. Add one cup of denatured alcohol. Give it a stir, put on the lid and let it sit for at least 24 hours. If there is still undissolved shellac at the bottom of the jar after 24 hours, give it a gentle shake and let it sit another 12 hours. By that time everything should have dissolved. Once it’s dissolved, pour it through a coffee filter into a clean jar and put an air tight lid on it, and it’s ready to use. It will be pretty thin. That’s ok because for this application I don’t want a thick product. You can make different “cuts”, i.e. concentrations, of shellac for different purposes. It’s pretty useful stuff for a woodworker. If you make it yourself it’s of better quality than the pre-made stuff you get at the home improvement stores. I am not sure how long of a shelf life it has, to be honest. I’d think that as long as you have it in an airtight container it should last for months.

Not sure why it looks so dark in the photo. It’s really a pale gold color in real life. Just made this batch earlier in the week.

I use it mostly as a sealer. I figured out (I think at least) that the reason the beeswax/tung oil finish was looking so poor after a couple of months was that it was being absorbed into the unsealed wood. Maybe. I do know that after I started putting on the sealer before the final finishes the projects look much better and doesn’t seem to degrade over time.

I use a disposable brush to put a thin coat on the raw wood after it’s been sanded. Don’t load up the brush and really slather it on, use just enough to cover the wood. A lot of it will absorb into the wood, especially on end grain, so I put on 2-3 thin coats. Then I buff it lightly with #OOOO steel wool. Wipe it down with a clean cloth and look for any imperfections or problem and sand and apply another coat if needed.

This is what walnut looks like after three coats of the shellac has been applied.

People with good eyes will note that this thing should have been sanded more. But this is going to be a pencil holder for my workbench so I don’t really care that much so I only sanded it up to 240 grit and I wasn’t real careful even doing that. It’s going to get beat up anyway. This has 3 coats of shellac on it.
There is no such thing as too many pencils in a shop.

Now you could just buff this out as-is, maybe put on a thicker cut or more coats as necessary to get a nice finish. Shellac makes a perfectly good wood finish all by itself and has an advantage in that it is repairable. You can just apply another coat, the alcohol will dissolve the existing shellac and it will all blend together. But shellac is fairly easy to damage and I want something a bit more durable and harder, so I’ve started using carnauba wax.

Carnauba is interesting stuff. It’s made from the leaves of a palm tree from South America. The stuff is incredibly useful. Go look it up over at Wikipedia if you want to know more.

I learned an interesting trick for applying the wax from watching videos on Youtube. I buy solid carnauba formed into a bar about the size of a candy bar. I spin the bowl or whatever on the lathe at about medium speed and press the bar against the spinning bowl.

This leaves a deposit of wax on the bowl. Then I turn up the speed on the lathe and buff it out with a clean cloth.

That generates enough friction to heat the wax up and melt it, leaving behind a nice, glossy surface.

BTW: the black stripe is India ink. It’s a great way to add accents to a piece. But if you use the ink make sure you seal the wood first or it will seep into the wood, sometimes traveling a considerable distance through the wood fibers.

As far as I’m concerned, there are a lot of advantages to this. It doesn’t take long to do. The shellac dries pretty quickly so I generally just leave the piece on the lathe during the whole process. It only takes a few minutes to apply a coat of the wax. The resulting finish looks pretty darn nice. And it seems to be pretty durable as well. Best of all there are no harsh or harmful chemicals in this stuff. Shellac and carnauba wax are both so safe they’re used as food ingredients. The alcohol evaporates within a few minutes. Some caution is necessary because of alcohol fumes, but that stuff is heck of a lot safer to use than many of the additives they put into commercial finishes.

It’s also reasonably cheap. That bar of wax cost me about $13 and it looks like it will last me a year or longer. It takes very little to cover a bowl. That 1 lb bag of shellac flakes cost me about $30. At the rate I’m using it that bag will last me over a year as well. The actual cost of the shellac works out to about $1.87 of shellac flakes per cup of liquid product at the rate I use it. Denatured alcohol sets me back $35/gallon, or $2.18 per cup. Rounding everything off, it costs me about $4 per 8 oz cup to make the liquid shellac I use. Now I could get commercially premade stuff for about that cost or even a bit less than that, but this way I know exactly what’s in the product I’m using. I don’t have to be afraid of some kind of weird chemicals being in the stuff that could be potentially harmful. Some commercial producers throw in additives to extend the shelf life because that can could be sitting on the shelf in a store for years before someone buys it. They also add coloring agents, chemicals to control evaporation rates and I don’t know what all else. And the quality seems much better than what I’ve bought commercially.

It does slightly alter the color of the wood, however. The lightest grade of shellac will add a sort of golden tone to woods, especially lighter colored woods. It generally isn’t all that noticeable, though. It is available in different colors that range into a deep, reddish brown.

Rikon Band Saw

I mentioned a week or so ago that I bought this. So far it looks like it’s a pretty nice saw, but it’s early days yet. I bought it from Amazon. It arrived well packed in a single big box weighing around 80 lbs. I had to use a handcart to get the thing down into the workshop. It does not come with a stand so I had to spend another $50 to get a stand for it. It went together pretty easily. It took longer to put the stand together than it took to put the saw together. The saw comes with all of the tools needed to put it together except for a screwdriver. The only thing I had to put on the saw was the table and a few bits and pieces, and do basic setup of the blade guides. The blade was pre-installed. Installing the table was a bit fiddly, and I think I’ll need to get in there and do a bit of fine tuning to get everything perfectly square.

So far it looks like a really nice saw. I’ve wanted one of these for a long time and it is already proving itself to be one of the more useful tools I have in the shop.

To be honest I didn’t really expect much from a bandsaw in this price range. I paid $430 for the Rikon and I assumed that despite the glowing reviews it would be under powered, be flimsy and have problems. I was wrong. Build quality seems to generally be excellent. The motor hasn’t bogged down even when cutting 4+ inch thick stock. Dust collection isn’t as good as I’d like it to be but even there it isn’t horrible. It does a good job cutting curves and circles.

It does have some minor issues that aren’t deal killers. They claim it has a full 5″ cutting capacity. It’s actually a bit less than that. It seems rather noisy when cutting, but I don’t have a lot of experience with bandsaws so this might be normal. I’m a bit concerned about the amount of sawdust that accumulates on the lower blade guides as shown in the photo up there. The fence is, well, a basic fence that pretty much works, but I’d have liked one a bit more sturdy. Still, at this price I should be grateful it comes with a useable fence at all.

Let’s see, what else is going on- oh, I have a new resin piece sitting in the pressure pot that should be coming out in 2 days. I’m using up some scrap wood and am going to try to make a small decorative lamp. I picked up some small LED lamp inserts with in-line switches for about $7 each that look like they should work. So we’ll see how that goes once the resin is cured and I get it out of the pot. I figure it will take at least 2 – 3 days for it to cure.

The weather has been, well, this is Wisconsin. The weather here is always a bit strange. I remember days when we literally had snow storms in the middle of May. In the last week we went from winter like conditions where the temperatures never got above 35 degrees and one or two snow falls, to temperatures now up in the mid to high sixties.

Not much is going on out in the gardens. MrsGF got bored yesterday and did some more cleanup in the gardens, but other than that most gardening stuff is going to be on hold until late winter when we start planning what to grow. And somehow that dopey rose bush in front of the house is still in flower.

I don’t know how this thing does it. After days of temperatures under 35 degrees, dipping down to about 20 at night, this thing is still flowering?

I picked up a really nice piece of ambrosia maple and I’m trying to figure out what to do with that. It looks like a really interesting piece of wood. The problem is it’s green. My moisture meter says it’s up about 35% moisture. That means I can’t just start whacking away at it. I’ll have to work it down into a rough shape and then let it sit and dry for a few weeks before I can actually finish it up.

A lot of wood turners love working with green wood because it is a lot easier to rough into shape on the lathe. I think these people are silly. Working with dry wood is, in my personal experience, not that much more difficult than working with the green stuff if your tools are sharp and you’re using the right techniques. I like to think I’m a patient person, but sitting around waiting weeks or even months for a green bowl blank to dry down? No thanks. Plus green wood warps, cracks and checks as it dries down and I’ve ended up with nice pieces of wood being tossed onto the scrap pile. So I’d much, much rather work with dry wood than green.

And that’s about it for now.

Finishing Wood, Doors and Stuff

Shameless plug: Before I get started I have to mention this before I forget. The best resource I ran across for learning about woodturning has been the YouTube videos of “Turn a wood bowl“. Kent has a lot of videos that cover just about everything from the basics to more advanced topics. He takes the time to actually explain why some things work and others won’t, what mistakes to avoid, etc. He doesn’t just cover turning, he talks about how to sharpen your tools, how to finish them, how to sand them, tips and tricks to make your life a lot easier. I learned more from him than from all the other resources I’ve found put together. Or visit his website https://turnawoodbowl.com/

Many weeks ago we talked with the contractor/builder we’ve worked with for many years now about replacing a bunch of windows and our front door. He warned us that he was booked solid for the entire summer and it would be until mid to late fall before he could get around it. That was fine because we were in no hurry. One of the issues he was dealing with was massive delays in getting just about anything, especially anything that had to be custom made like our windows.

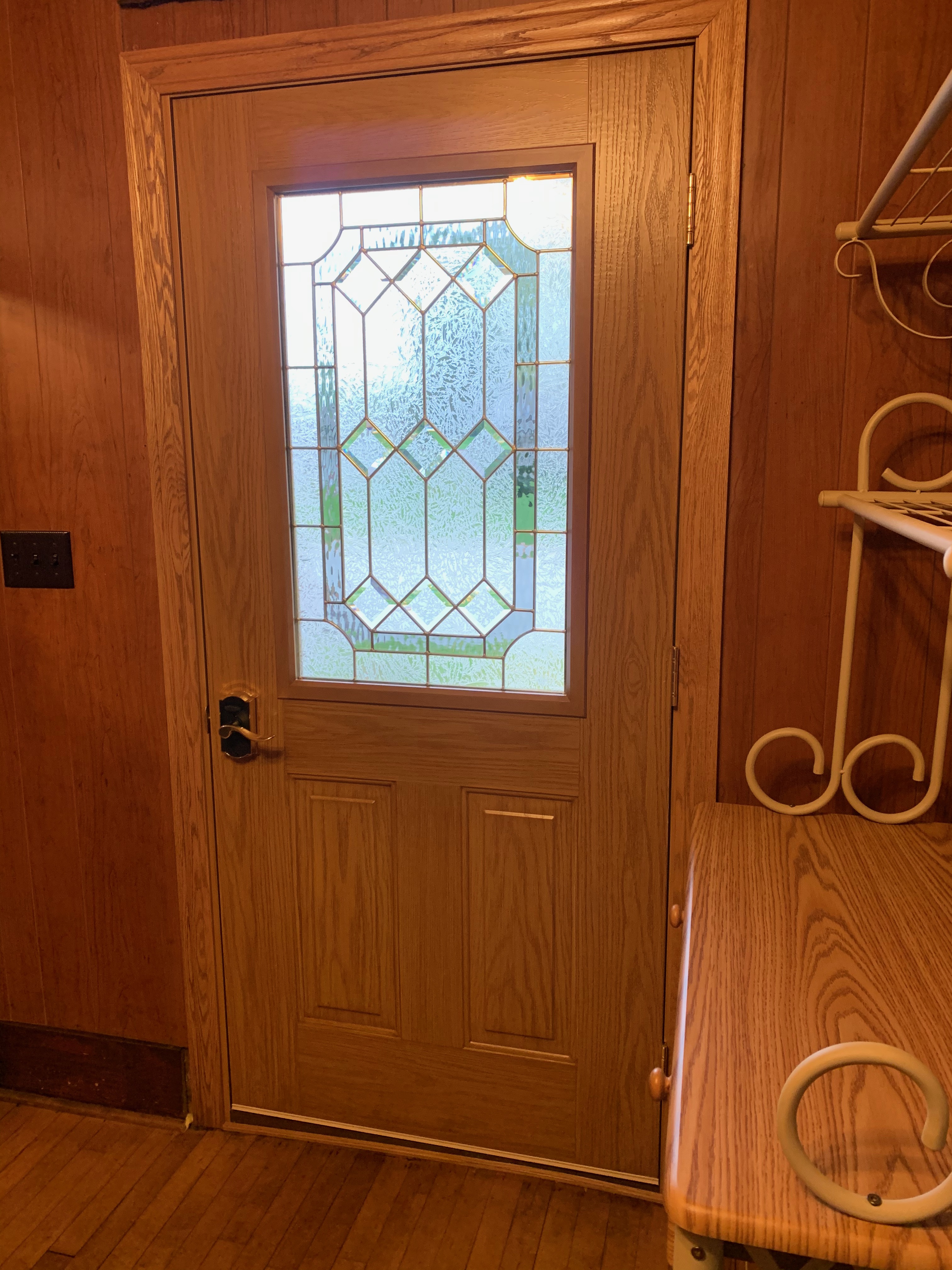

Ooo, it’s all shiny and stuff!

He finally got the door in the other day and came over and installed that, but we’re still waiting for the factory to finish the windows. But it isn’t just delays that he’s dealing with. There has been a massive increase in prices on even basic construction materials like 2×4 studs, OSB and plywood. It’s been a real struggle for him and his customers. His cost for basic materials has literally doubled in the last 10 months.

Anyway, he got the new door installed, which was one of the biggest issues we wanted to get taken care of before the snow flies. We’re hoping the window factory gets our order finished pretty soon here. Most of the windows we’re getting replaced would survive another winter, but one of them is in pretty bad shape. All we can do about that is keep our fingers crossed.

Finishes

I am always learning new stuff all the time. That’s one of the most enjoyable things about all of the stuff I get involved with. Getting involved in woodturning has been a very enjoyable, occasionally frustrating, and quite satisfying experience.

One of the frustrating things has been putting a finish on the bowls, vases and other stuff I’ve been making. When I make furniture I’m working with wood that is of very high quality to begin with, with beautiful grain that already looks beautiful without doing anything to it. With something like white oak or ash I just use a light stain to accent the grain and give it a slightly darker color to match the traditional arts & crafts style I like, and then top it off with a simple paste wax that protects the wood and is easy to repair and renew when necessary.

But with bowls and the other stuff I turn out on the lathe it’s a different story. First I’m often working with scraps of wood left over from other projects that aren’t exactly what you’d call high quality wood to begin with. I have to deal with large amounts of end grain which can be a problem to work with, and other issues.

My go-to finish was a product that was primarily beeswax mixed with tung oil and cedar oil to soften it. It produced a nice, semi-satin sort of glow that looked quite beautiful. But now that I’ve been doing this for a while I’ve noticed that some of the early pieces I did that were finished with that stuff looked downright nasty. The finish was turning dull in spots, no longer reflecting light, looking, oh, muddy, I suppose you could call it. Basically it was a good thing I haven’t been selling these things because whoever bought one and saw that happening would not be happy about it.

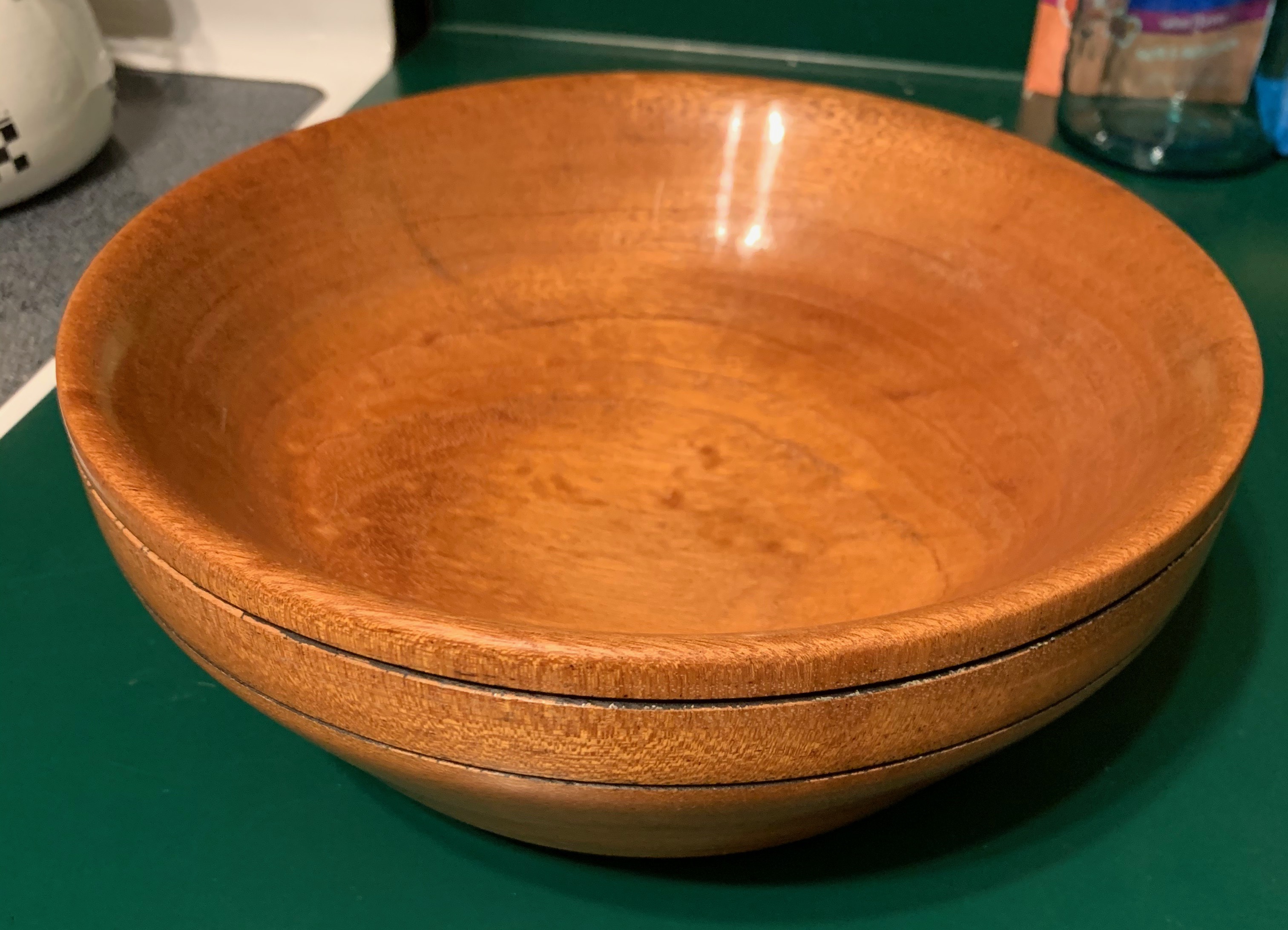

Experimental bowl. African mahogany, refinished with undercoat of home made shellac sealer with carnauba wax topcoat.

So what the heck was going on? Why was the finish deteriorating like that? I took a close look at the pieces on which the finish seemed to be failing and realized I was making a very basic mistake. The finish was being absorbed by the wood fibers, basically being sucked into the wood instead of remaining on the surface. This was most apparent on the endgrain when I took a close look at it. And it is a very basic mistake I should have realized before I tried to finish the bowls. But to be fair I never had to deal with it before, really. With furniture you almost never even see the endgrain and don’t have to deal with it. With a turned object like a bowl, the endgrain can’t be hidden and has to be dealt with.

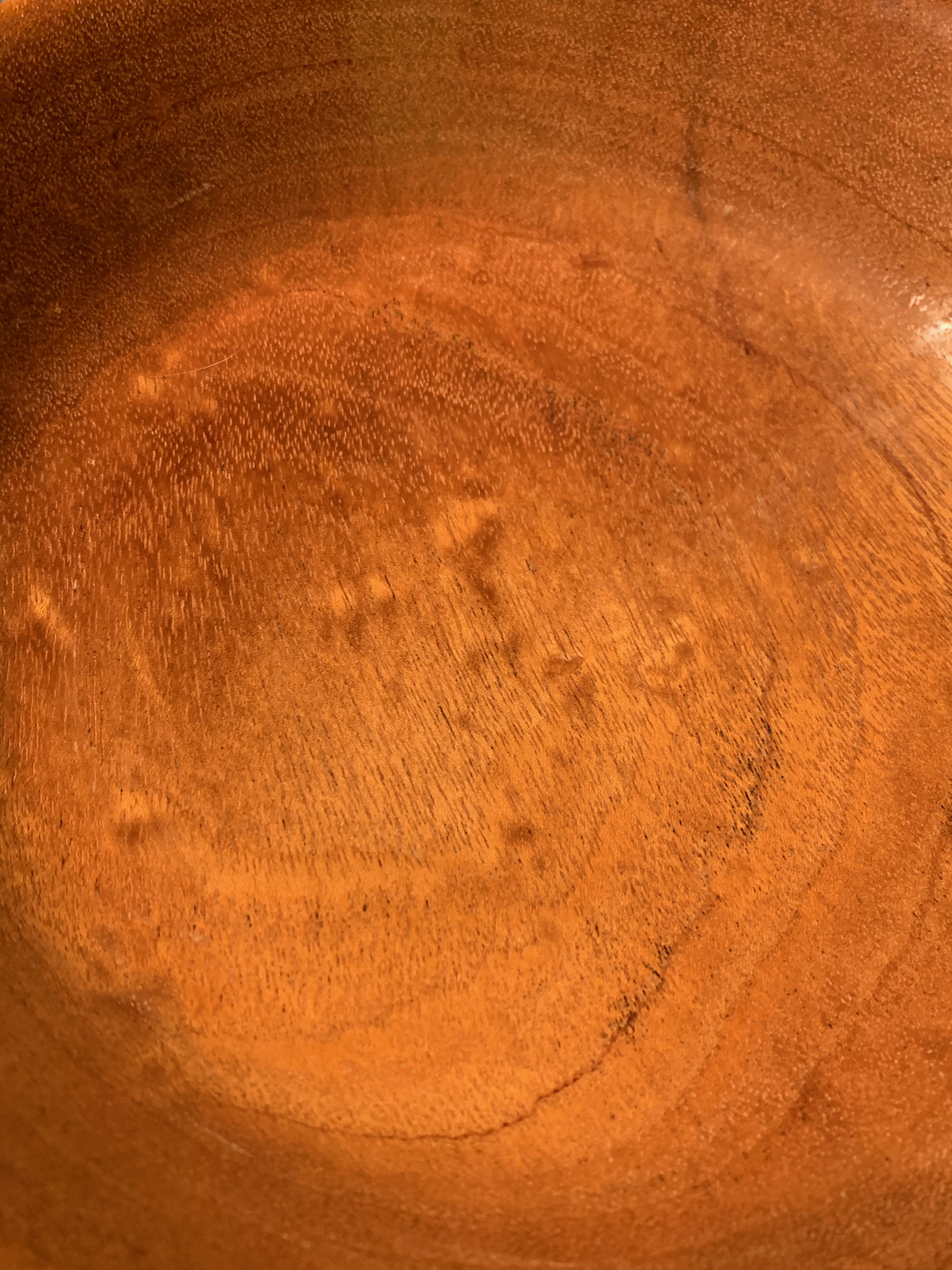

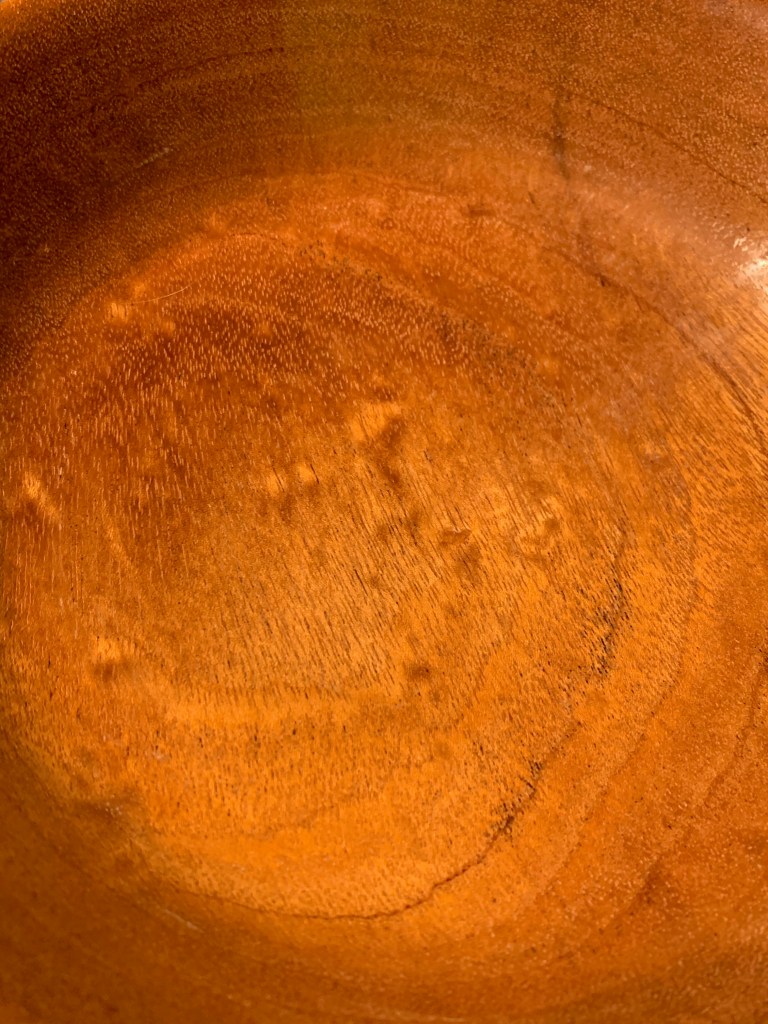

close up interior of bowl with the shellac and carnauba wax finish. It does put a nice shine on the wood. Hopefully it will be more durable than what I was using.

So I’m experimenting with different materials and techniques to deal with the situation. I’ve started making my own shellac finish now, using a thin cut to make a sanding sealer that will seal the pores of the wood so it can’t absorb the final finish. That has the added benefit of helping to fill in small imperfections in the wood so they aren’t so obvious when the final finish is applied. And I’ve switched from the beeswax product to carnauba wax.

The results are pretty good so far. It’s a bit more work. It adds a few additional steps to the whole process, light sanding between coats of shellac, and considerable buffing with the wax. But the early experiments looked so good that I’m taking some of the pieces with the deteriorating surface, re-sanding them and refinishing them with the new technique.

The frustrating thing is that I already knew all of this about wood absorbing the finish and looking nasty. I never had to deal with it before but I still should have remembered. But I’ve learned my lesson now. The new process takes longer, requires more sanding, but so far it seems like the end result is going to be worth it.

This is also an entirely food-safe process. I’m making my own shellac. The only ingredients in that are shellac, which is food safe (and sometimes actually an ingredient in food) mixed with alcohol. The alcohol is just a carrier for the shellac and evaporates. And the wax is pure carnauba which is also a food safe wax. No weird, toxic chemicals involved at all. If this does a good job and proves to be stable, this is probably going to become the standard way I finish wood projects.
